Advantage:

-Superlow price, high cost-effective

-Probe wireless connect, freely operation

-B, B/M, B+Color, B+PDI, B+PW multiple imaging modes

-Windows system based, easy to extend function include remote diagnosis

-Supporting various USB ink/laser printers

Specification:

-Screen: 15inch LCD

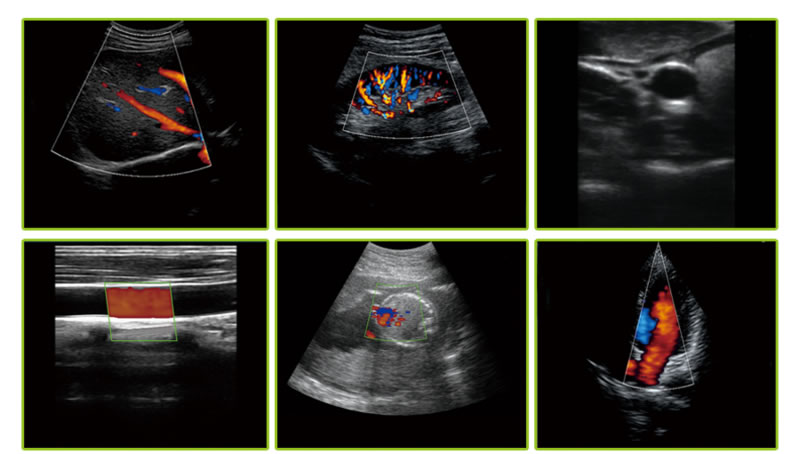

-Image mode: B, B/M, B+Color, B+PDI, B+PW

-Channel of ultrasound circuit board: 32/64(different model probe)

-Probe Connect: Wireless connect, freely operation

-Probe Type: Convex, Microconvex, Linear, Small Linear, Transvaginal, Phased array(coming soon), single head or double(the heads can select two in above type)

-Probe element: 128/192(different model probe)

-Probe frequency and scan depth, angle/width:

Convex head 3.5MHz/5MHz, 90/160/220/305mm, 60°

Linear head 7.5MHz/10MHz, 20/40/60/100mm, 40mm

Small Linear head 10MHz/14MHz, 20/30/40/55mm, 25mm

Microconvex head 3.5MHz/5MHz, 90/130/160/200mm, 88°

Transvaginal head 6.5MHz/8MHz, 40/60/80/100mm, 149°

-Image Adjust: BGain, TGC, DYN, Focus, Depth, Harmonic, Denoise, Color Gain, Steer, PRF

-Cineplay: auto and manual, frames can set as 100/200/500/1000

-Puncture assist function: the function of in-plane puncture guide line, out-of-plane puncture guide line, automatic blood vessel measurement.

-Measure: Length, Area, Angle, heart rate, Obstetrics

-Operation system: Windows

-Image frame rate: 18 frames/second

-Image save: jpg, avi and DICOM format, store volume 120G

-Image and report print: can work with most model ink/laser printer

-Remote diagnosis: can install any remote diagnosis software and work

-Battery working time: Probe built-in battery work 2~5 hours(according to different probe and whether continue scan), Host built-in battery work 2 hours

-Probe battery charge: by USB charge or wireless charge, take 2 hours

-Dimension: L362×W340×H50mm

-Weight: 4Kg

Standard Configuration:

Host 1 unit

Double head probe 1 pcs (if change to single head probe also OK and lower price)

Accessories and Packing(can select bag of draw bar box)

Optional:

More probe, Puncture kit, Trolley, Printer, Wireless charger for probe
