Specification:

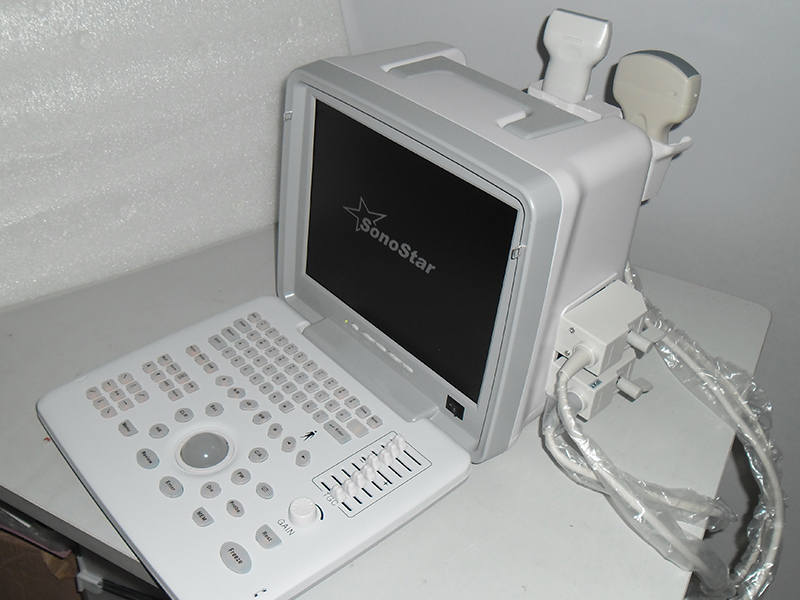

- Screen: 12 inch LCD screen.

- Display mode: B, B/B,4B, B+M, and M

- Magnification: ×0.8, ×1.0, ×1.2 (Depth hoist display), and × 1.5，×1 .8, ×2.0 (Depth hoist display)

- Dynamic range: 64~96dB adjustable.

- Focusing: Four sections of dynamic electronic focusing may be elected.

- Pre-processes: changeable aperture, dynamic changes of the marks, dynamic filter

  and edge enhancement, etc.

- Pro-processes: 8 kind of γadjustments,16 kinds of color process, line correlation,

  frame correlation and linear interpolation, etc.

- Frequency conversion arrange: 2.5MHz/3.0MHz/3.5MHz/4.0MHz/6.5MHz/7MHz

- Calculation: distance, perimeter, area, heart rate, pregnancy week (BPD, GS, CRL, FL, AC,

  veterinary version with animal pregnancy week) and anticipated delivery date.

- Note: name, serial numbers of case history, gender, age, 16 body marks (with probe),

  full-screen character, real-time clock

- Puncture guide: The puncture guide line can be displayed under B mode.

- Gain control: The total gain, near field and far field can be adjusted successively.

- Image polarity: left/right, black/white and up/down reverse.

- Fractionated gain: 2 time of enlargements

- Movie memory: 256 pictures can be memorized successively when the real-time is displayed.

- Image memory: 128 pictures Permanent storage.

- Image review: Images can be reviewed successively and checked one by one.

- Output interface: 1 groups of SVGA video output may mate with SVGA color monitor; 1 groups of PAL

  video output may mate with PAL monitor, video image recording instrument and image workshop, etc;

  1 group of USB Connection for plug USB storage disk.

- G/W: 7KGs, N/W: 5KGs, Packing size: 480x380x320mm

Standard configuration:

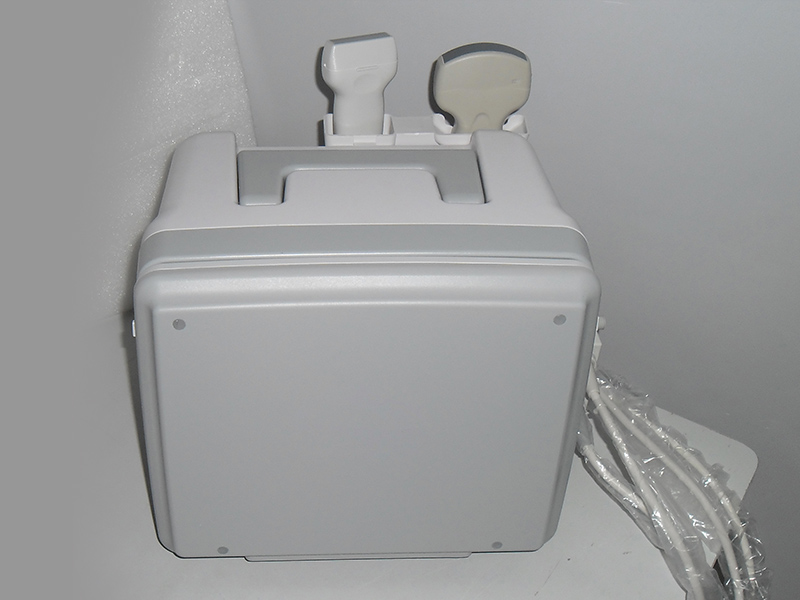

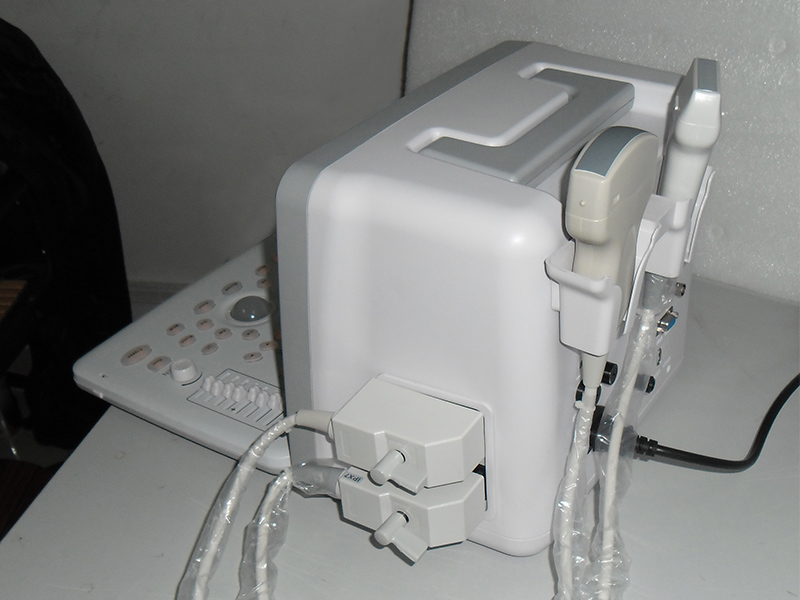

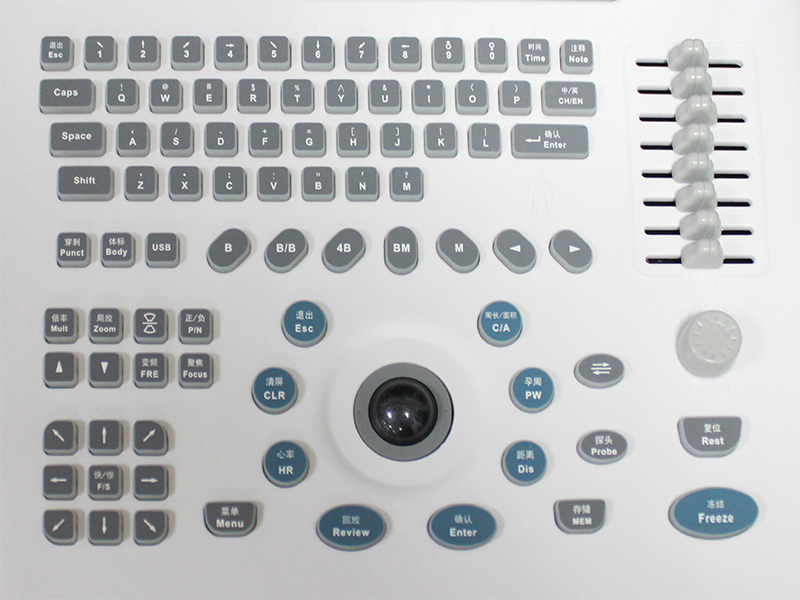

One host(silicone keyboard), one convex probe

Optional:

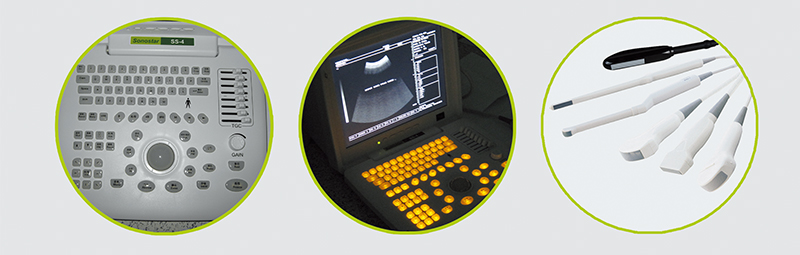

Transvaginal, linear, rectal, micro-convex probe;

Change to laser carving keyboard.
