Standard Configuration:

1 unit Color Doppler Ultrasound System,

1 pc Convex probe, 1pc built-in battery

Options:

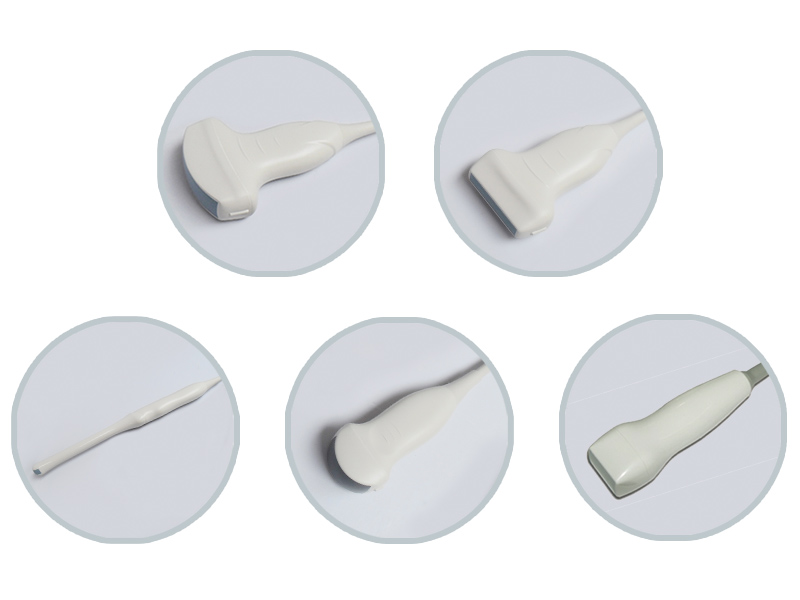

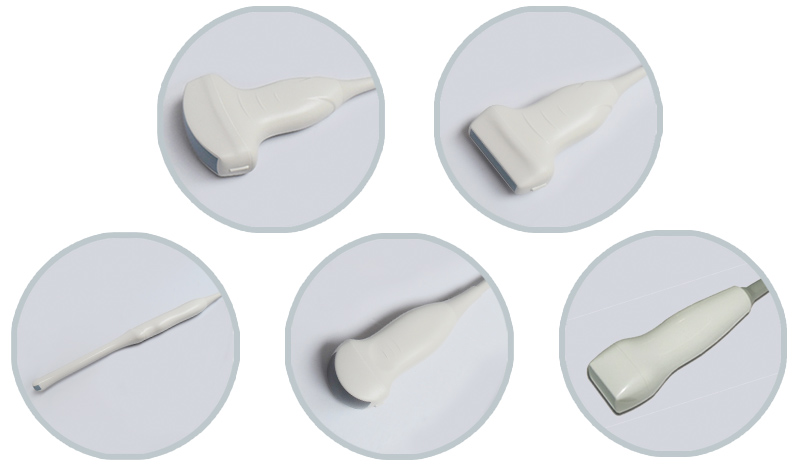

Linear probe, Transvaginal probe, Micro-Convex probe, Phase Array probe, puncture guide

-USB water-resistant footswitch

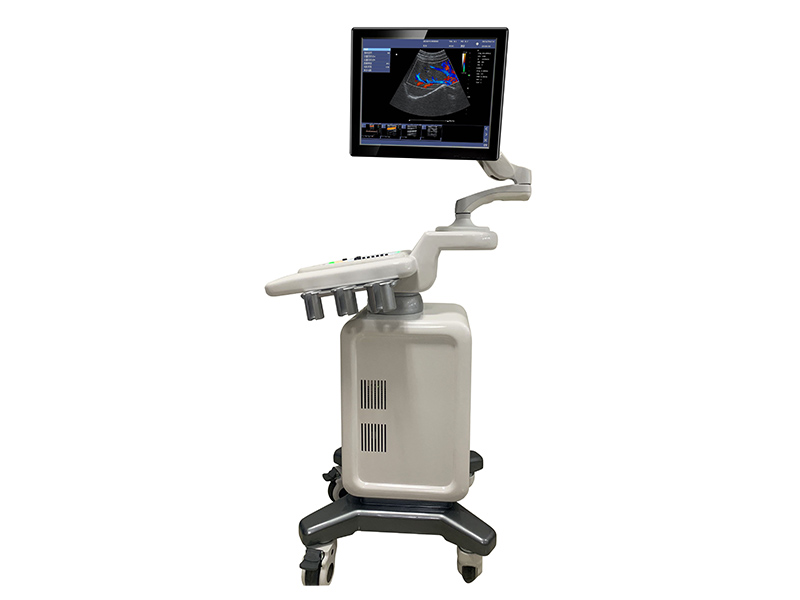

-Mobile trolley

-Wheeled transport case

Description：

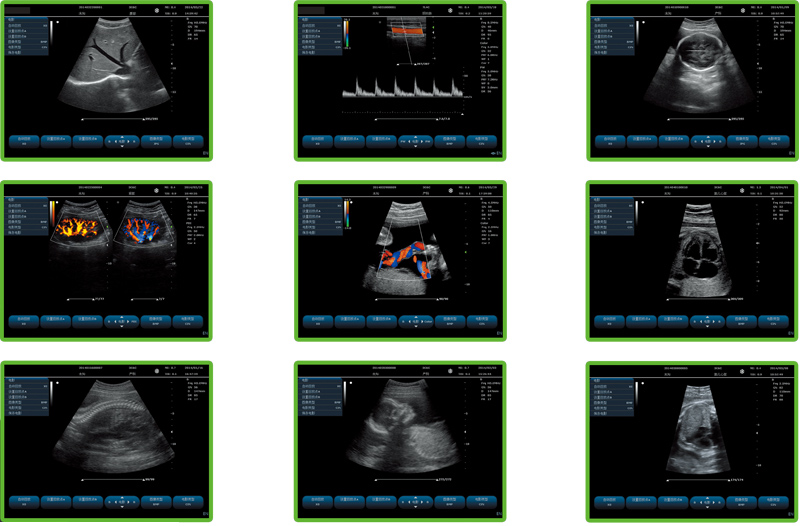

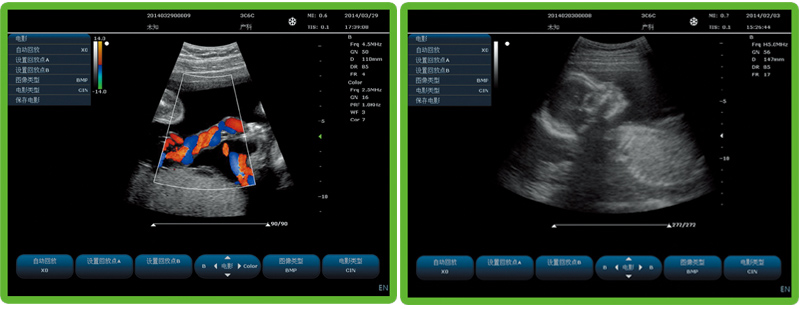

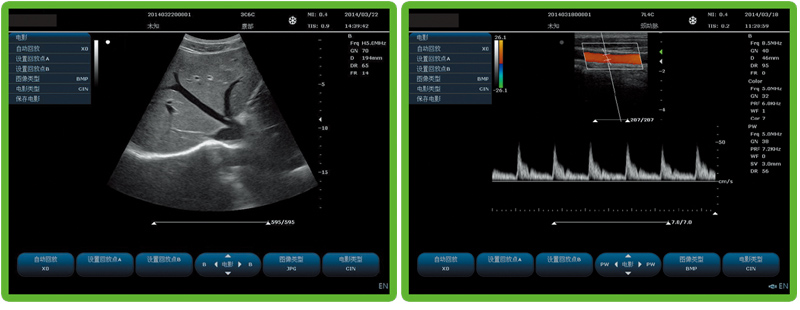

-Imaging Modes: B, B/B, B/M, M, 4B, C, PDI, PW

-Scanning mode: Convex, Linear, Endocavity

-Gray scale levels:256

-Display:15 ’’ high resolution LCD monitor

-Transducer Connector: 2 standard

-Scanning depth: up to 351mm

-Physical channels64

-Transducer element128

-Dynamic imaging technologies: Digital Beam-forming

-Digital Frequency Scan

-Dynamic Receiving focusing

-Dynamic Receiving apodization

-Real-time Dynamic Aperture。

-Pre-processing:8-segment TGC adjustment, Dynamic range (0-100), Frame correlation (0-7), Edge enhancement (0-7), Line density (High/Mid/Low)

-Post-processing: Gray scale (0-14), Scan angle up to 150, left/right reverse, up/down reverse.

-General Measurement: distance, circumference, area, (trace/ellipse), volume, etc.

-Calculation package: abdomen,cardiac,gynecology,obstetrics, urology, small parts(thyroid),ect.

-Zoom: 10 times

-Cine loop: standard 982-frame cine loop,can up to 6400 frames

-Integrated Hard disk:500GB

-Probe connectiors: 2

-8-segment TGC

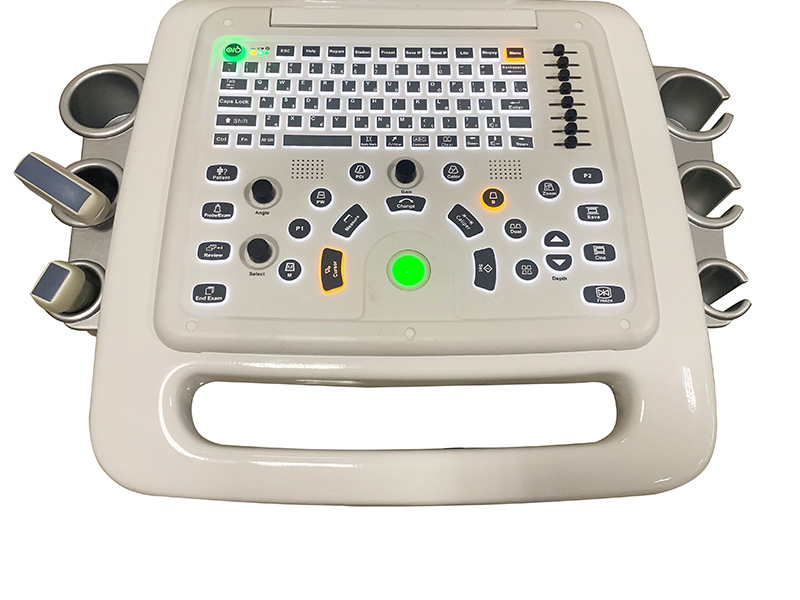

-Back lit control panel

-Internal lithium Battery Supporting normal diagnosis up to 1.5 hours

-Inverted Harmonic Imaging

-Pseudo color imaging mode

-Annotation library for quick comment

-Graph/text report function

-DICOM storage SCU

-User defined exam settings

-User defined parameters capture (Acquire Set)

-Intuitive soft key at the bottom of screen, clicking supported

-Beam steering for better needle visualization

-Patient information management system

-Fetal trending--Fetal growth curve graph

-Lithotripsy function supported

-Biopsy function supported

-Support polyembryony measurement up to six

-Intuitive context dependent soft key

-USB image transfer and software upgrade

-Language of UI: Chinese, English

-Power supply: 100~240VAC, 50Hz/60Hz

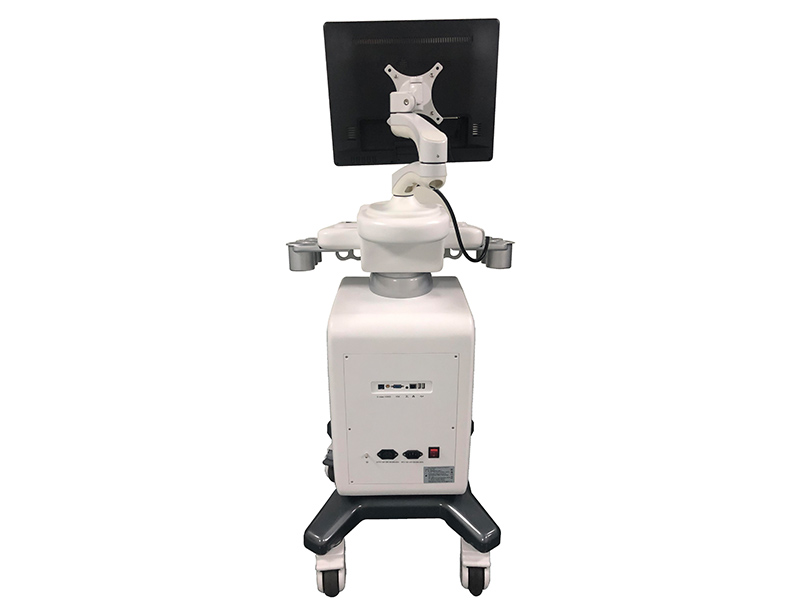

-Peripheral Ports: Two Transducer Ports;Two USB Ports;DVI (to connect to external monitor or projector);Remote;Video Output;S Video;LAN;Power Input Port;Foot switch

-Net weight: Approx.8.5 kg

-Dimensions: 400mm×394mm×172mm
