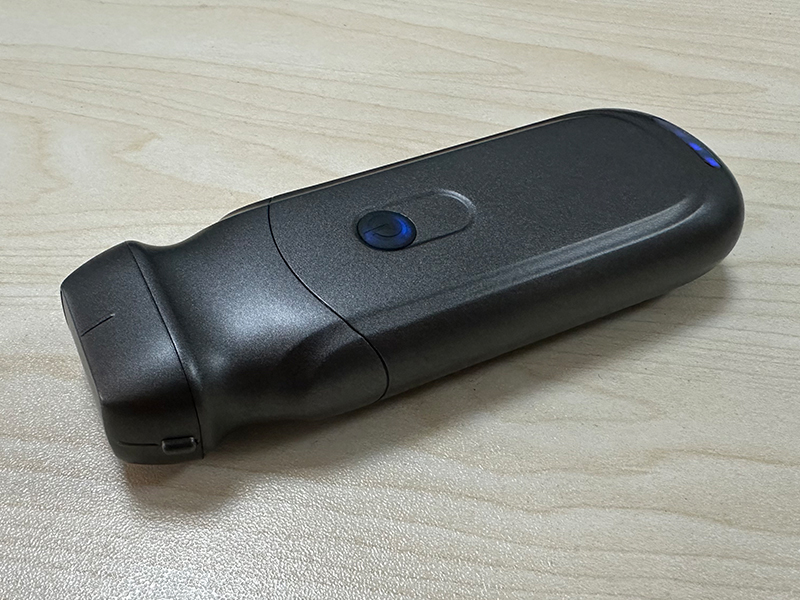

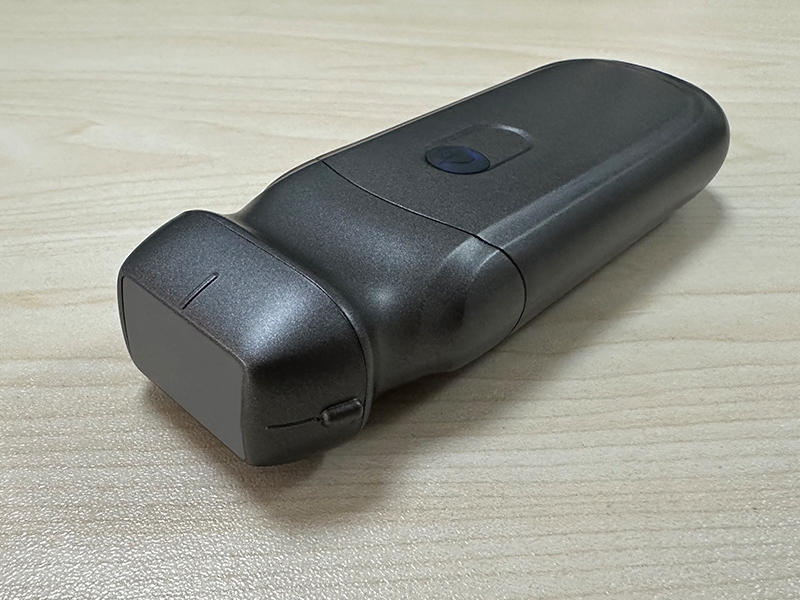

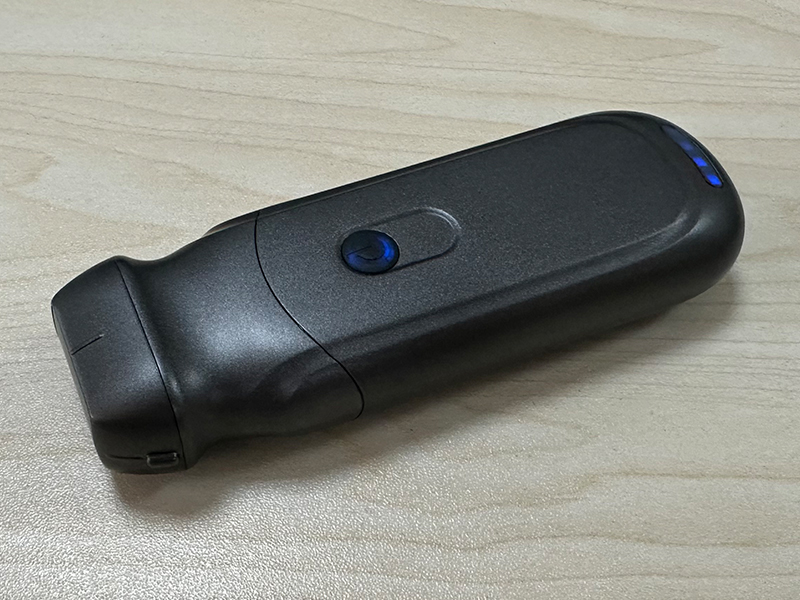

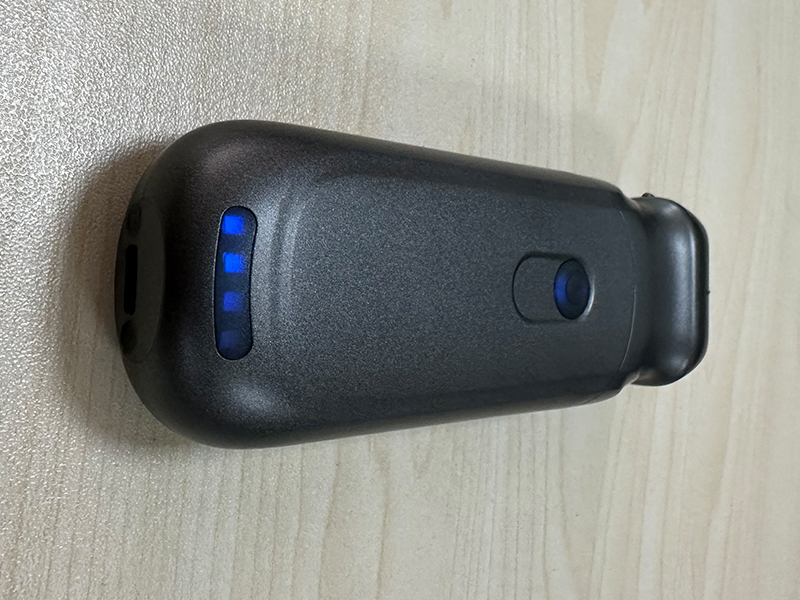

6PA phased array palm doppler ultrasound scanner
[pics:title]
[pics:title]
[pics:title]
[pics:title]

6PA phased array palm doppler ultrasound scanner

SonoStarMed is a professional medical device company specializing in the R&D, manufacturing, and sales of ultrasound equipment. Our flagship probe-based handheld smart ultrasound imaging system miniaturizes traditional diagnostic scanners to the size of a smartphone and a weight of just 200 grams. It seamlessly transmits images wirelessly to various smartphones, tablets, and computers for highly convenient operation. Our comprehensive product lineup includes handheld ultrasound and color Doppler systems, mini and pocket B-scans, portable and cart-based color Doppler units, ophthalmic ultrasound scanners, wireless B-scans and color Doppler systems, compact ultrasound devices, digital stethoscopes, probe-based B-scans, ultrasound diagnostic systems, and bladder scanners. As a dedicated manufacturer, we also provide customized B-scan and color Doppler solutions. Recently, we launched a groundbreaking wearable B-scan weighing only 45 grams and sized like a matchbox, which has once again sent shockwaves through the entire industry.
Inquire →

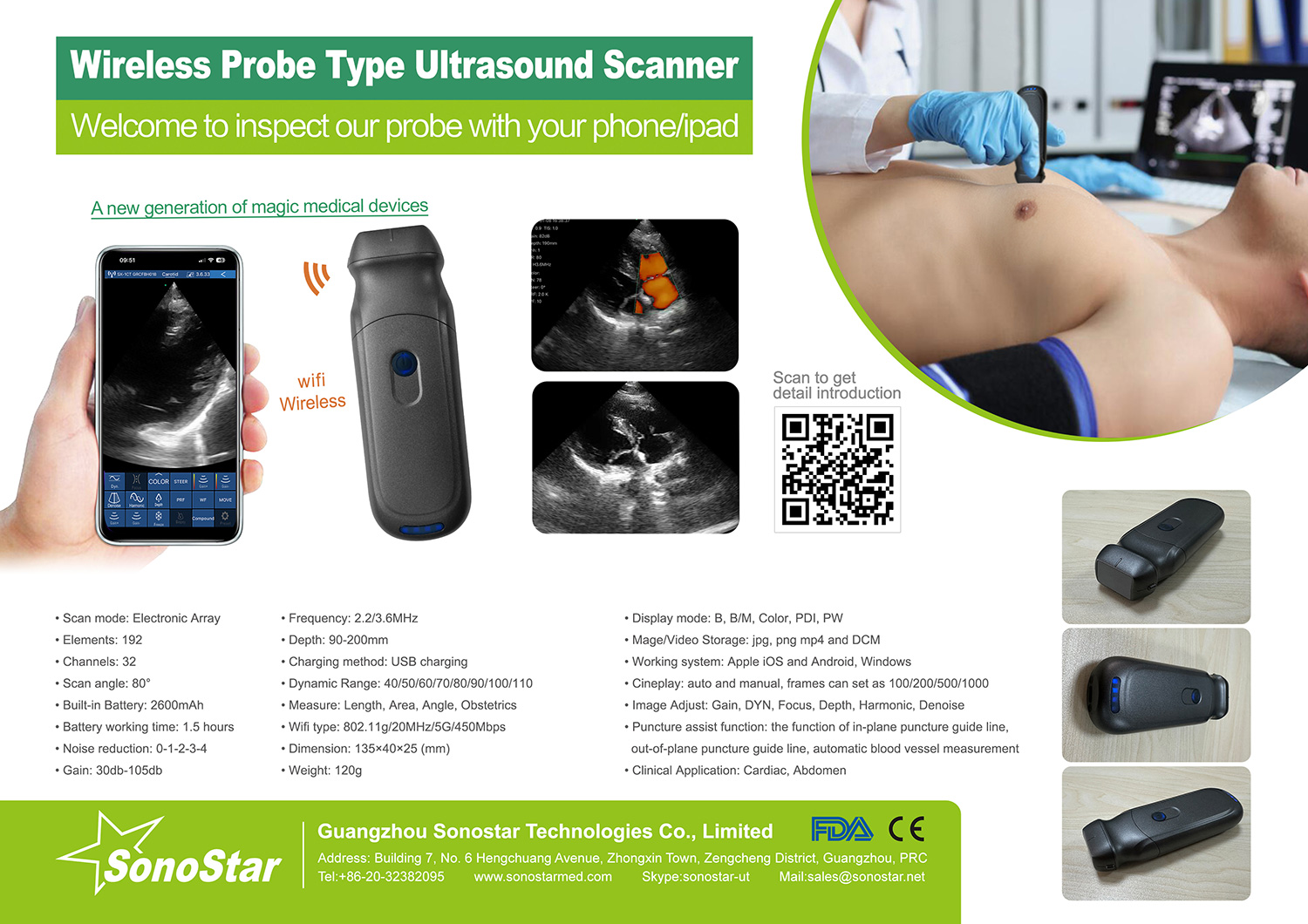

- Scanning mode: Electronic phased array

Elements: 192

Channels: 32

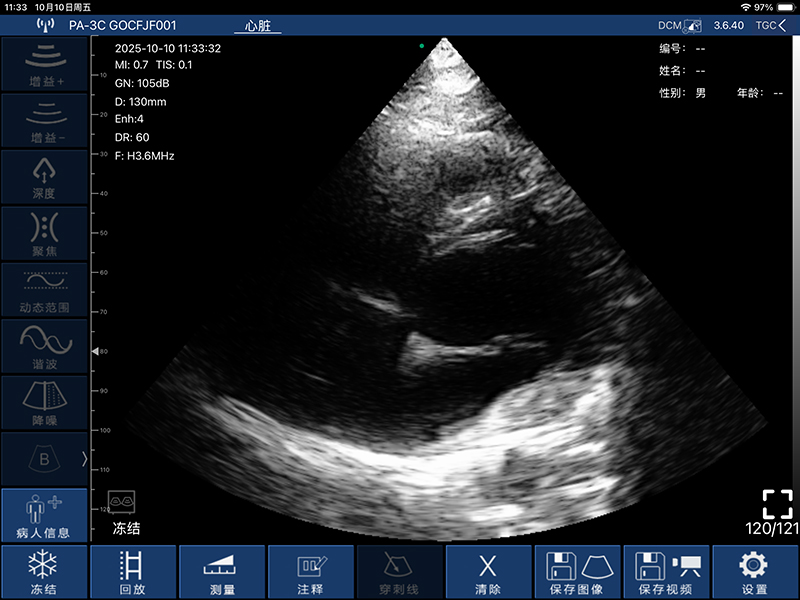

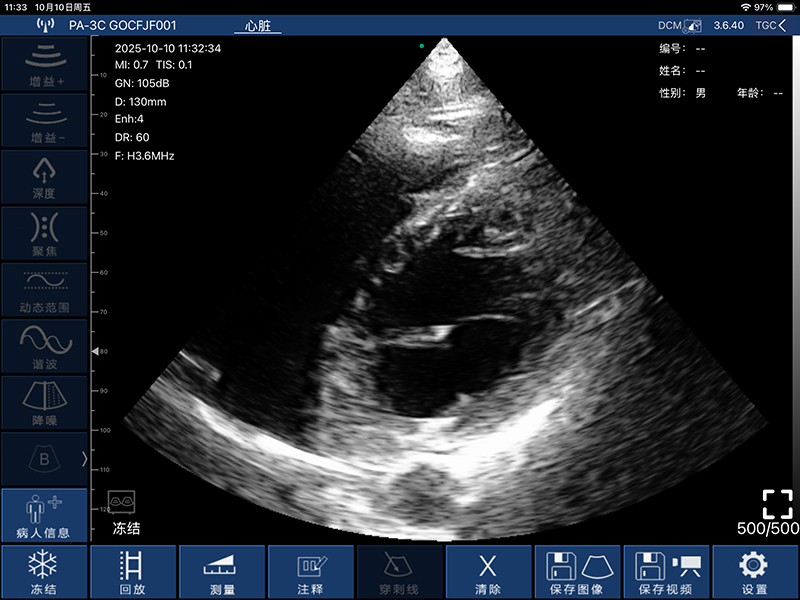

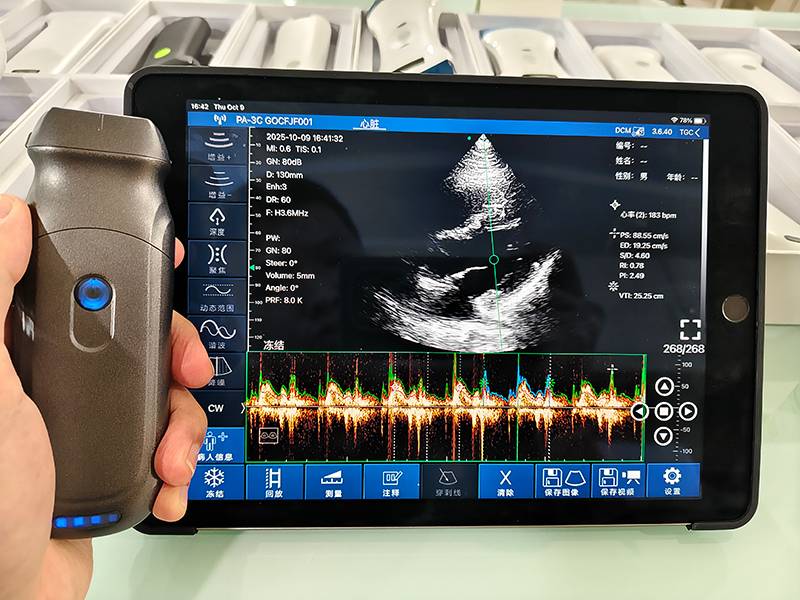

- Display mode: B, B/M, and Color, PW, CW, PDI

- Frequency: central 2.8MHz, cardiac reverse harmonic

  3.6mhz, and the transcranial fundamental 2.2MHz

- Display Angle: 80°

- Display Depth: 90/130/160/200mm

- Image Adjust: Gain, DYN, Focus, Depth, Harmonic, Denoise

- Puncture assist function: the function of in-plane

  puncture guide line, out-of-plane puncture guide line,

  automatic blood vessel measurement.

- Noise reduction: 0-1-2-3-4

- Gain: 30db-105db

- Dynamic Range: 40/50/60/70/80/90/100/110

- Measure: Length, Area, Angle, Heart

- Image frame rate: 15~20 framescond

- Battery working time: 1.5hours

- Charge: by USB cable charger

- Dimension: 135×40×25mm

- Weight: 120g

- Wifi type: 802.11g/20MHz/5G/450Mbps

- Working system: Apple iOS and Android, Windows



>>Catalog Download
